The Order Of The Louvers In The LCS Telemetry

The order of the louvers in the LCS telemetry can be seen in the ts_xml MTDome Louvers enum. The order is as follows. Note that ts_xml enums are 1-based. In order to get the position in a Python array, 1 needs to be subtracted from the index since Python enums are 0-based.

• A1 = 1

• A2 = 2

• B1 = 3

• B2 = 4

• B3 = 5

• C1 = 6

• C2 = 7

• C3 = 8

• D1 = 9

• D2 = 10

• D3 = 11

• E1 = 12

• E2 = 13

• E3 = 14

• F1 = 15

• F2 = 16

• F3 = 17

• G1 = 18

• G2 = 19

• G3 = 20

• H1 = 21

• H2 = 22

• H3 = 23

• I1 = 24

• I2 = 25

• I3 = 26

• L1 = 27

• L2 = 28

• L3 = 29

• M1 = 30

• M2 = 31

• M3 = 32

• N1 = 33

• N2 = 34

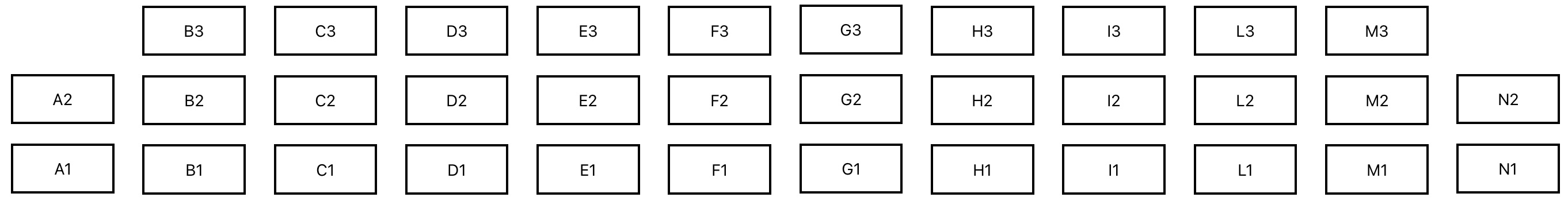

This is a schematic overview of the locations of the louvers on the MTDome as seen from the inside of the MTDome.
